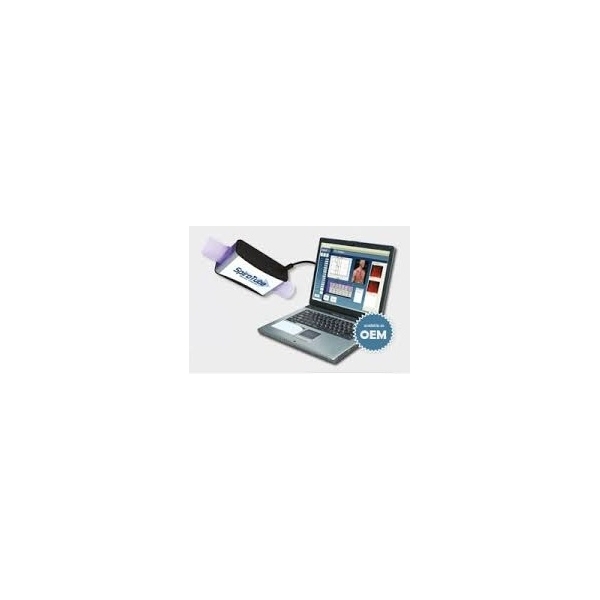

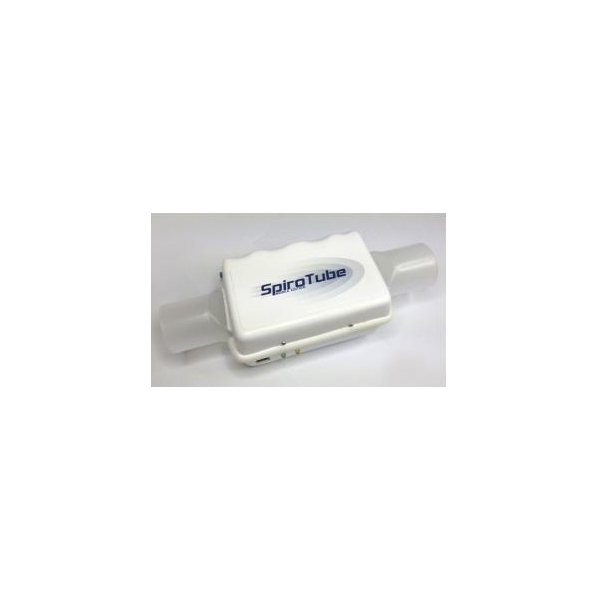

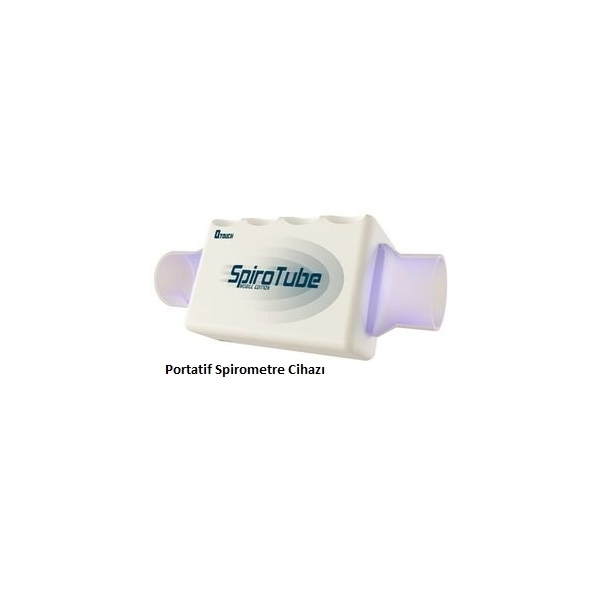

Pc Spirometre Cihazı Spirotube

General description

SpiroTube is a pulmonary function diagnostics and monitoring device.
SpiroTube is suitable for screening COPD and asthma.
To learn more about spirometry

Specification

Precision:	3 %
Resolution:	8 mL/sec
Flow Range:	+- 18 L/Sec
Digital sampling rate:	100 MHz
Flow dimensions:	30 mm (OD) X 150 mm
Device dimensions:	27 X 60 X 150 mm
Communication:	USB or serial
Power Supply:	USB 5 V
Measurement principle:	multiple-path

• Connection to PC via USB
• Highly cost efficient design, robust, durable mechanics
• No moving parts, durable factory calibration

Additional features

Miscellaneous

• Standard Interfaces, easy integration to ECG, Home monitoring, Tele-medical set-top-boxes
• Ultra-violet lightshield assists disinfection process
• Complete integration package with driver, communication support DLL and example source code available as an option
• Automatic internal calibration, (external validation with calibration pump available as an option)
• Easy and efficitent integration to HIS (Hospital Information Systems)
• Software upgrade option
• Plug & Play USB PC connection detection
• Easy upgrade, standard interfaces
• Long-term monitoring for home care use
• Pharmaceutical testing subsystem
• The inner surface of the flow tube is continuous, it can be disinfected with cold disinfecting liquid
